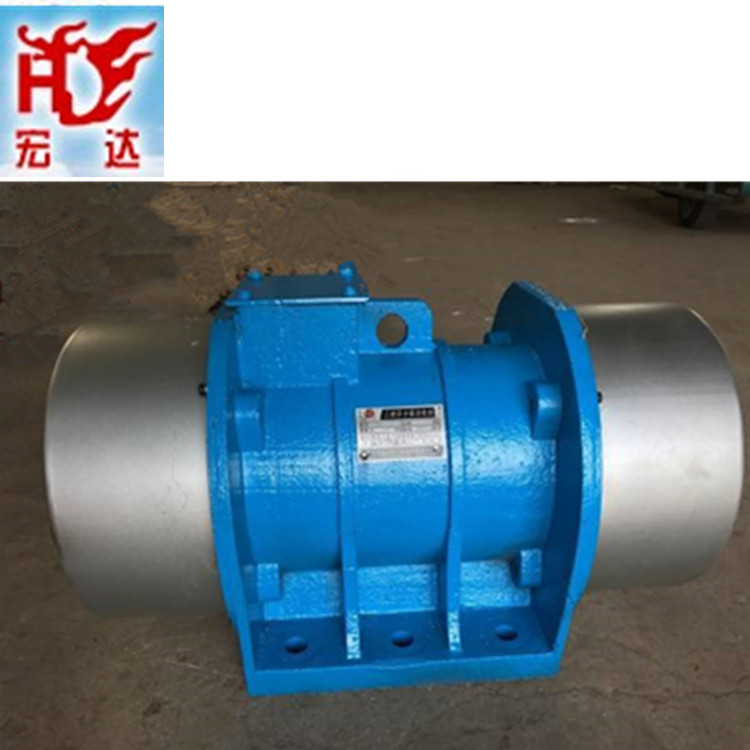

XVM-25-2振动电机生产厂家|XVM-25-2振动电机报价
1）此型号振动电机系采用先进技术设计生产的振动电机。
详细介绍：
2）先进的设计技术：所有参数的计算及其优化设计均由计算机工作站完整完成。精密的加工工艺、严格的质量体系，保证了振动电机工作状态下各部件配合、承力在优质范围内。
3）特殊的电磁设计：振动电机所需要配置的定、转子均采用具有优质导磁性能的硅钢片，减少铁芯的涡流损耗，保证强大的起动力矩，可快速达到额定运转速度。
4）重载型轴承设计：所采用轴承均为重载型特制轴承，足以承受和传递径向激振力和轴向负荷，并有良好的散热能力。双重密封设计，保证在严重粉尘环境下的轴承室清洁。选用进口耐高温轴承锂基脂润滑油，延长轴承使用寿命。
5）无极调节：振动电机两端的激振块上标有有效的刻度盘，可以非常容易的调节激振力及工作力矩从零到较大的无极调节，满足工作需要。
6)。XVM振动电机的设计可适用于各种标准电压及频率的三相交流电源，如适用于中国、欧洲的220/380V、50HZ电压等级；美国的230/460V、60HZ电压等级；日本的220V、50/60HZ电压等级等，能应用于世界各地。还可适用各种电气制动方式，如能耗制动、反接制动等。
XVM振动电机外形及安装尺寸
型号 | 振次 | 较大激振力 | 功率 | 电流 | 功率因数 | 效率 | 起动电流倍数 | 重量 | 图号 | 外型及安装尺寸 (mm) | 紧固螺栓 |
A | B | C | D | E | F | G | H | J | K | M |
[N] | [kw] | [kg] |
xvm0.7-2 | 2870 1460 980 740 | 700 | 0.15 | 0.38 | 0.86 | 70 | 3.8 | 12 | A | 240 | 92 | 90 | 130 | 120 | 160 | 11 | 70 | 160 | 22 | 40 | M10 |
xvm1.5-2 | 1500 | 0.15 | 0.38 | 0.86 | 70 | 3.8 | 16 | A | 240 | 92 | 90 | 130 | 120 | 160 | 11 | 70 | 160 | 22 | 40 | M10 |
xvm2.5-2 | 2500 | 0.25 | 0.58 | 0.86 | 76 | 4.6 | 20 | A | 310 | 143 | 100 | 140 | 130 | 170 | 13 | 80 | 180 | 26 | 45 | M12 |
xvm 5-2 | 5000 | 0.40 | 1.01 | 0.83 | 72 | 4.8 | 32 | A | 342 | 173 | 120 | 150 | 160 | 200 | 18 | 100 | 240 | 36 | 54 | M16 |
xvm 8-2 | 8000 | 0.75 | 1.76 | 0.88 | 74 | 6.3 | 48 | B | 390 | 192 | 140 | 170 | 210 | 220 | 18 | 110 | 270 | 20 | 60 | M16 |
xvm 16-2 | 16000 | 1.10 | 2.80 | 0.86 | 70 | 6.1 | 76 | B | 466 | 250 | 180 | 235 | 230 | 285 | 19 | 140 | 315 | 22 | 75 | M18 |
xvm 25-2 | 25000 | 1.80 | 4.30 | 0.90 | 71 | 5.6 | 110 | B | 560 | 285 | 224 | 270 | 274 | 330 | 21 | 157 | 340 | 24 | 80 | M20 |
xvm 32-2 | 32000 | 2.20 | 5.10 | 0.90 | 73 | 6.3 | 168 | B | 600 | 320 | 180 | 350 | 270 | 420 | 32 | 176 | 390 | 26 | 100 | M30 |
xvm 50-2 | 50000 | 3.50 | 8.18 | 0.89 | 73 | 7.9 | 216 | B | 680 | 373 | 155 | 390 | 310 | 470 | 34 | 198 | 420 | 30 | 110 | M33 |
xvm 1.2-4 | 1200 | 0.07 | 0.30 | 0.61 | 60 | 3.0 | 16 | A | 240 | 92 | 90 | 130 | 120 | 160 | 11 | 70 | 160 | 22 | 40 | M10 |
xvm 2.5-4 | 2500 | 0.10 | 0.32 | 0.69 | 66 | 4.6 | 24 | A | 310 | 143 | 100 | 140 | 130 | 170 | 13 | 80 | 180 | 26 | 45 | M12 |
xvm 5-4 | 5000 | 0.20 | 0.65 | 0.67 | 70 | 5.4 | 42 | A | 378 | 173 | 120 | 150 | 160 | 200 | 18 | 100 | 240 | 36 | 54 | M16 |
xvm 8-4 | 8000 | 0.40 | 1.14 | 0.72 | 73 | 6.2 | 58 | B | 410 | 192 | 140 | 170 | 210 | 220 | 18 | 110 | 270 | 20 | 60 | M16 |
xvm 16-4 | 16000 | 0.75 | 2.08 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
