色粉振动筛陶瓷粉超声波筛粉机不锈钢筛分机

产品类别：超声波振动筛

品牌：圣雷特机械

换能器安装：外置式

设备材质：接触物料304

产品用途：精细粉体筛分

加工定制：是

产地/厂家：河南新乡

CSB系列超声波旋振筛产品概述

超声波振动筛是在XZS系列旋振筛基础上换装了超声波网架，通过超声波电源和超声波换能器将超声波转换为高频机械波，并传递给筛面，以达到良好筛分目的。多用于超细粉、超微粉的筛分作业。

Summarize

Ultrasonic vibrating screen is changed ultrasonic grids on the basis of XZS series rotary vibration sieve.Through ultrasonic power and ultrasonic transducer,converts ultrasonic high-frequency into mechanical wave, and passed on to the screen surface, in order to achieve good screening purpose.Which are use for the powder, superfine powder sieving.

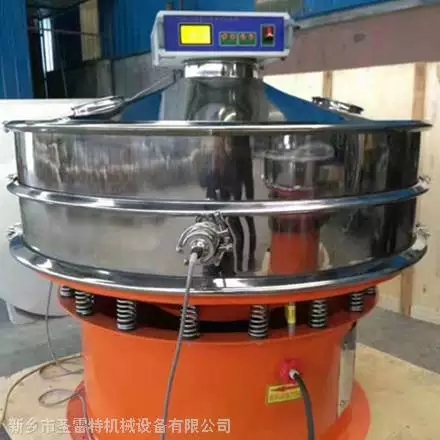

CSB系列超声波旋振筛是在XZS系列旋振筛的基础上引入了超声波清网装置，通过将220V、50Hz或110V、60Hz电能转化为18KHz的高频电能，输入超声换能器，将其变成18KHz机械振动，从而达到高效筛分和清网的目的，使超微细粉筛分成为易事。该系统在传统的振动筛基础上在筛网上引入一个低振幅、高频率的超声振动波（机械波），以改善超微细粉体的筛分性能。特别适合高附加值精细粉体的用户使用。

CSB series ultrosonic vibrating screen is leading in ultrosonic cleaning network device.To screen and clean efficiently, this ultrasonic vibrating screen(Ultrasonic Separators) can convert the electric energy of 220V, 50Hz to the high frequency electric energy of 110V, 60Hz, and imporove the vibrating sieving frequency.In order to improve ultrafine powder screening performance,the system lead in a ultrosonic vibration wave(mechanical wave)of low amplitude,high frequency on the screen net,

CSB系列超声波旋振筛的性能特点

　　超声波筛分系统能够筛分普通筛分机不能分离的重质、轻质、超细、强吸附性粉末,几乎对所有难筛分的粉末有效。附加在筛网上的超声振动波（机械波），使超微细粉体接受巨大的超声加速度，改善低密度粉在重力沉降中的平降（粉末与网口轻接触）、滑移效应，改善高密度金属在网口的滞留或楔入，改善带静电粉体的粘附效应，从而提高筛分效率和筛分质量。用筛分通过率表示，一般情况下比不加超声振动筛增加通过率50%—400% 。它的性能特点有：

　　 ⑴减少或不产生清网时间；

　　 ⑵不产生弹跳球等辅助物对粉体的污染；

　　 ⑶保持网口尺寸，稳定筛分精度；

　　 ⑷分解粘附物质，减少筛上物；

　　 ⑸减少筛分次数。

Features

Ultrasonic screening system can separate heavy, light, super fine, strong adsorption powder, almost of all difficult to effective screening of powder.Attached to the screen mesh of the ultrasonic vibration wave (mechanical wave), makes the ultra micro powder accept huge ultrasonic acceleration,Improving low density powder horizontal decent(powder contact with the net) in gravity settling,domino offect,improving high density metal retention or wedged in the net, Improving the adhension effect of electrostatic powder, so as to improve the screening efficiency and screening quality improvement with the adhesion effect of electrostatic powder, thus improve the screening efficiency and quality of screening.In screening pass rate, usually passing rate of 50% - 400% more than without ultrasonic vibrating screen.

1, to reduce or not produce clear net time.

2, Does not produce the AIDS such as rubber ball to powder pollution in screening process

3, keep size, stable screening accuracy.

4, decomposition adhesive material, reduce material on the screen.

5, reducing frequency of screening.

CSB系列超声波旋振筛的产品特点

1、优秀的筛分能力和更高的筛分精度，实现高精度筛分，精度可提高1—70%，产量可提高0.5-10倍。

2、有效防止筛网堵塞，难筛分的物料也几乎不会堵塞网孔。能够控制较窄的粒度范围。

3、真正解决强吸附性、易团聚、高静电、轻比重物料的筛分难题。

4、保证所筛分物料的特性不变。

5、数字信号输入，实现频率自动跟踪。

6、换能器能量转换效率高（达到国外同行标准）。

7、24小时连续工作，控制电源和换能器不需降温（达到国际同类产品标准）。

8、换能器与筛网采用螺扣连接，便于拆装、清洁。

9、分离式结构，具有共振环，效果好，筛网寿命长。

10、能筛分25μm的粉粒，能过滤10μm的液体。

11、不需要橡胶球清网，杜绝橡胶磨损引起的再污染。

12、粘接式筛网固定网架，无污染，无死角，受力均匀，更换方便。

Characteristic

1, excellent sieving ablity and higher screening accuracy, achiving high precision sieving, accuracy of 1-70%,

2, effectively prevent the mesh plug,

3, real solution of strong adsorption, easy to reunite, high electrostatic, lightweight materials screening problem.

4, ensure the screening materials characteristics unchanged.

5, digital signal input, to realize automatic frequency tracking.

6, transducer, high energy conversion efficiency (standard to foreign counterparts)

7, 24 hours of continuous work, the control power supply and the transducer without cooling (reached the international similar product standards).

8, transducer and sieve mesh adopts screw connection, convenient for dismantling and cleaning.

9, separation structure has resonance loop, effect is good, screen mesh long service life.

10, 25 microns of powder to screening , can filter the liquid of 10 microns.

11, don't need a rubber ball cleaning net, put an end to rubber abrasion caused by pollution.

12, adhesive type screen mesh fixed network frame, no pollution, no dead Angle, to receive strength evenly, easy to change.

CSB系列超声波旋振筛适用范围

碳化硅、棕刚玉、白刚玉、钼粉、钨粉、钴粉、镍粉、不锈钢粉、合金粉末、粉末涂料、石英粉、金刚粉、电磁粉、激光粉、铝粉、电解铜粉、研磨粉、耐火材料、夜光粉、玻璃微珠、橡胶助剂、糖粉、淀粉、盐类、豆奶粉、原料药中间体等普通筛机不好筛分的各种物料。

注：超声波振动筛是在XZS系列旋振筛基础上换装了超声波网架，通过超声波电源和超声波换能器将超声波转换为高频机械波，并传递给筛面，以达到良好筛分目的。该系列超声波振动筛筛机技术参数等同于XZS系列旋振筛参数，详细参数可以参考XZS系列旋振筛。

超声网通——超声系统扩展使用：

　　用同一个超声电源，连接一个清网换能器，用超声换能器的辐射面与被堵塞的网面接触，相对位移,即可清除网口的堵塞物。具有快速高效改善清网质量、不改变网口尺寸、不伤害丝网表面质量等优点,可广泛应用于试验筛和工作筛。

Applications.

Silicon carbide, corundum, white corundum, molybdenum powder, tungsten powder, cobalt powder, nickel powder, stainless steel powder, alloy powder, powder coating, quartz powder, diamond powder, magnetic powder, laser powder, aluminum powder, electrolytic copper powder, polishing powder, refractory materials, luminous powder, glass beads, rubber additives, sugar powder, starch, salt, soy, API intermediates, that ordinary sieve machine is difficult to screen.

Notes:Ultrasonic vibrating screen is changed ultrasonic grids on the basis of XZS series rotary vibration sieve.Through ultrasonic power and ultrasonic transducer,converts ultrasonic high-frequency into mechanical wave, and passed on to the screen surface, in order to achieve good screening purpose.The parameter of the series is the same as XZS series,detailed parameters please refer to XZS series.

Using ultrasound netcom - ultrasound system extension

With the same ultrasonic power supply, connect to a transducer, making the radiating surface of ultrasonic transducer and the blockage of net surface contact, relative displacement,, don't hurt the screen surface quality, can be widely applied in the test sieve sieve and work.
