沙场用脱水筛泥沙分级直线筛配套筛板

沙场用脱水筛泥沙分级直线筛配套筛板

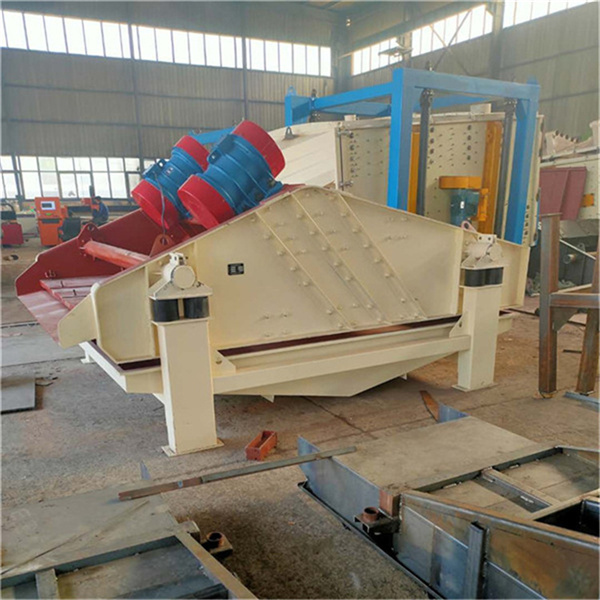

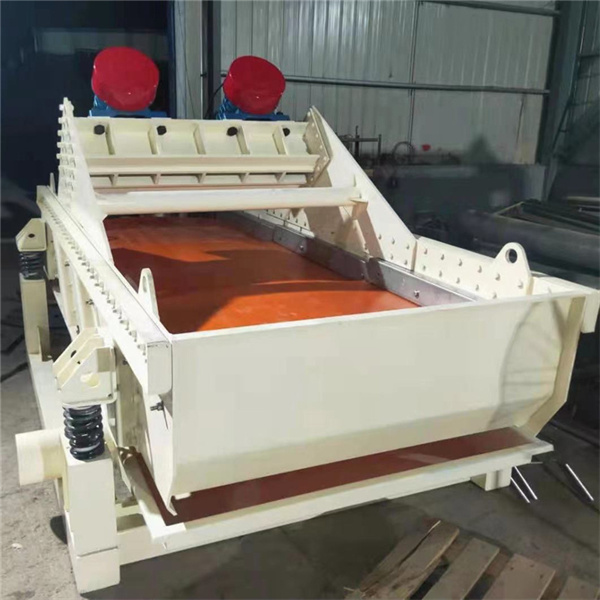

脱水筛是煤泥脱水功课的专用装备，普遍实用于煤泥接纳，压滤隔粗、过滤隔粗，别的极细物料的脱水、接纳等工艺前提。高频脱水筛采取了双电极自同步技巧，通用型公平块、可调振幅振动器。高频脱水筛重要由筛箱、激振器、支承体系及电机构成。

脱水振动筛的应用范围广：细沙、尾砂、铁尾矿、金尾矿、铜尾矿、铅锌尾矿脱水筛、铅锌尾矿、石墨尾矿、水洗砂、石英砂、锆英砂、玻璃砂、建筑砂、铸造砂、建材砂、钾长石脱水、煤泥脱水、煤泥、精煤、水洗煤、湿煤、土壤修、污水处理、 城市污水、工业污水、河道污泥、固液分离、污水处理厂、等

工作原理：采用双电机驱动自同步技术，激振器通过绕性联轴器拖动，两组激振器作同步反向旋转时，其偏心块所产生的激振力在平行于电机轴线的方向相互抵消，在垂直于电机轴的方向叠为一合力，从而形成单一的沿振动方向的激振力，其两轴相对于筛面有一倾角，在激振力作用下使筛箱做往复直线运动，物料在筛面上被抛起跳跃向前作直线运动，同时V型设计的筛面结构更佳的实现脱水效果。

产品特点：

【1】、相对体积小，单位面积处理能力大，便于系统工艺布置。

【2】、专业设计的频率、振幅、低耗动力源，适合多种脱水需求24小时连续干排作业。

【3】、V型筛面设计，-5゜过筛面爬坡脱水，干排尾矿含水低、效率高。

【4】、高耐磨筛板使用寿命长，模块化组装设计，更换方便

【5】、型钢组件铆焊结合的方式，构成无内应力、强度高、质轻耐用的机架主体。。

Dehydration sieve is a special equipment for slime dehydration homework, which is generally practical in slime acceptance, press filtration separation, filtration separation, other extremely thin materials dehydration, acceptance and other process premise. High-frequency dehydration screen adopts double-electrode self-synchronization technique, universal fair block, adjustable amplitude vibrator. High frequency dehydration screen is mainly composed of sieve box, shock shock, support system and motor.

Application scope of dehydration vibration screen widely: fine sand, tailings, iron tailings, gold tailings, copper tailings, lead-zinc tailings dehydration sieve, lead-zinc tailings, graphite tailings, washing sand, sand, quartz sand, zirconium sand, glass sand, construction sand, building sand, building materials sand, potassium feldspar dewatering, coal slime dehydration, coal slime, cleaned coal, coal washing coal, wet coal, soil repair, sewage treatment, urban sewage, industrial sewage, river sludge, solid-liquid separation, sewage treatment plant, etc

Working principle: using dual motor drive since synchronous technology, vibrator through the winding coupling drag, two groups of shock for synchronous reverse rotation, the eccentric block excitation force in the direction of the parallel of the motor axis, in the motor axis in the vertical fold for a resultant force, to form a single vibration force along the vibration direction, the two axis of the screen has a inclination, make the screen box do straight motion, and the V design screen structure better dehydration effect.

Product features:

[1] Relatively small volume, large processing capacity per unit area, easy to facilitate the system process layout.

[2] Professional designed frequency, amplitude, low power source, suitable for a variety of dehydration needs 24 hours continuous dry arrangement operation.

[3], V-type screen surface design, -5 ゜ screen surface climbing and dehydration, dry discharge tailings have low water content, high efficiency.

[4]. High wear-resistant screen plate has long service life, modular assembly design and convenient replacement

[5] Type steel assembly riveting and welding combination, constitute the frame body without internal stress, high strength, light and durable.
